KUDOS BATTERY CRIMPER K

สุดยอดคีมย้ำหางปลา ย้ำสายไฟฟ้า อัตโนมัติ ทรงพลัง มีแบตเตอร์รี่ในตัว ใช้ง่าย ทุกรุ่นพร้อมแท่นชาร์จในชุด
รุ่นใหม่ล่าสุดทุกรุ่น ราคาถูกกว่าเดิม เทคโนโลยีทันสมัยกว่า พกพาสะดวก รวดเร็ว ทรงประสิทธิภาพ

#Kudos K-BGD3

KUDOS HYD. BATTERY K-BGD3
Youtube from Kudostools.com


#KUDOS KBGD3
KUDOS #KBGD3 Crimper Length : 459 mm

KUDOS #KBGD3 Crimper Weight : 3.1 kgs (w/o battery )

KUDOS #KBGD3 Crimper Specifications :
KUDOS #KBGD3 CrimperDrive unit : 18V DC motor

KUDOS #KBGD3 Crimper Charger (GS/CE) :
KUDOS #KBGD3 Crimper Input voltage : 230V single phase AC

KUDOS #KBGD3 Crimper Input frequency : 50~60Hz

KUDOS #KBGD3 Crimper Reservoir capacity : 40 cc
KUDOS #KBGD3 Crimper capacity :
KUDOS #KBGD3 Crimper Max pressure : 460 bar

KUDOS #KBGD3 Crimper Max output : 6.0 tons / 58.0 kN

KUDOS #KBGD3 Crimper Features :
KUDOS #KBGD3 Crimper Proper crimps are assured with butting steel jaws.

KUDOS #KBGD3 Crimper Increased strength and greater bearing area is provided with larger steel bolts.

KUDOS #KBGD3 Crimper Fast, easy, one-hand die insertion

KUDOS #KBGD3 Crimper No lost dies with spring loaded positive lock die retainer buttons.

KUDOS #KBGD3 Crimper Full crimp force assured with over center cam action.

KUDOS #KBGD3 Crimper Operator protection provided with butt stops and heat shrinktubing

KUDOS #KBGD3 Crimper Long life expectancy provided with fiberglass handles and light weight high strength aluminum alloy castings.

KUDOS #KBGD3 Crimper The “D3” groove accommodates the line of type “W”-die inserts.

KUDOS #KBGD3 Crimper Connector range :

KUDOS #KBGD3 Crimper Copper, aluminum, ACSR, copperweld, alumoweld, steel, 6201, 5005, compressed and compact conductors.

KUDOS #KBGD3 Crimper Copper taps: # 10 sol.-2/0 str.

KUDOS #KBGD3 Crimper Aluminum, ACSR taps: # 14 sol.-4/0 ACSR

KUDOS #KBGD3 Crimper Stirrups: # 6 ACSR-4/0 ACSR

KUDOS #KBGD3 Crimper Overhead full tension deadend, full tension splices, non tension splices, and terminals conductor range:# 10 str.-4/0 ACSR

KUDOS #KBGD3 Crimper Code conductor connectors: # 6-4/0 str. Copper and aluminum

#Kudos K-50 (Die Set)

KUDOS HYD. BATTERY K50(Die Set)
Youtube from Kudostools.com

KuDos-Battery-K50(Die Set).jpg

#KUDOS K-50 (Die Set)
KUDOS #K50(Die Set) Crimper Length : 427 mm

KUDOS #K50(Die Set) Crimper Weight : 3.3 kgs (w/o battery )

KUDOS #K50(Die Set) Crimper Specifications :
KUDOS #K50(Die Set) CrimperDrive unit : 18V DC motor

KUDOS #K50(Die Set) Crimper Charger (GS/CE) :
KUDOS #K50(Die Set) Crimper Input voltage : 230V single phase AC

KUDOS #K50(Die Set) Crimper Input frequency : 50~60Hz

KUDOS #K50(Die Set) Crimper Reservoir capacity : 48cc
KUDOS #K50(Die Set) Crimper capacity :
KUDOS #K50(Die Set) Crimper Max pressure : 520 bar

KUDOS #K50(Die Set) Crimper Max output : 5.53 tons / 49.2 kN

KUDOS #K50(Die Set) Crimper die sets as below (sold separately)

KUDOS #K50(Die Set) Crimper Mode No.K-50 Die Set :

KUDOS #K50(Die Set) Crimper Weight : 3.0 kgs

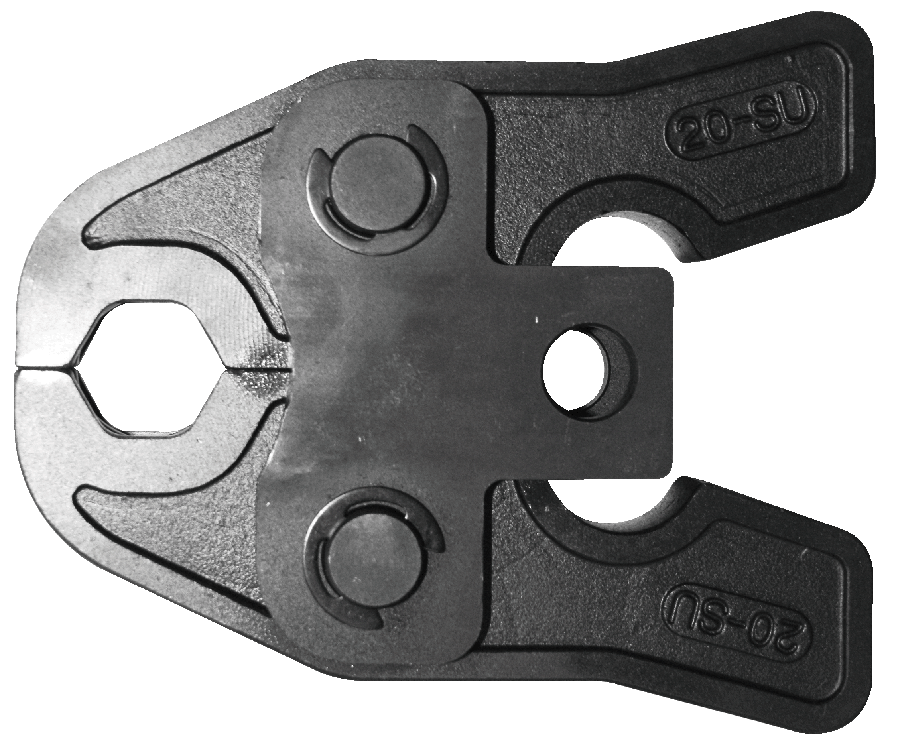

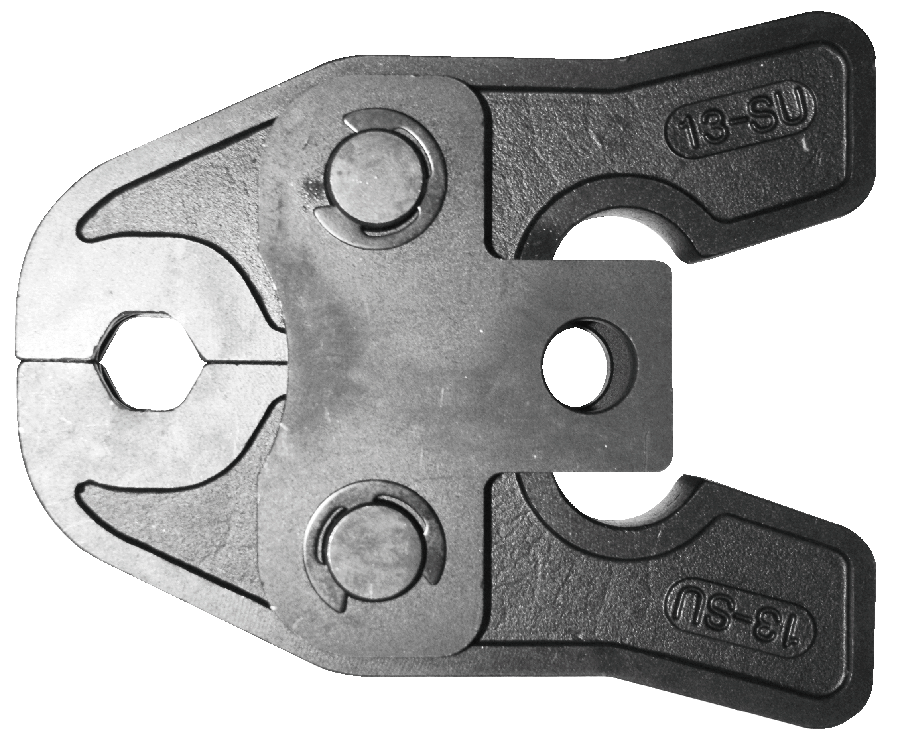

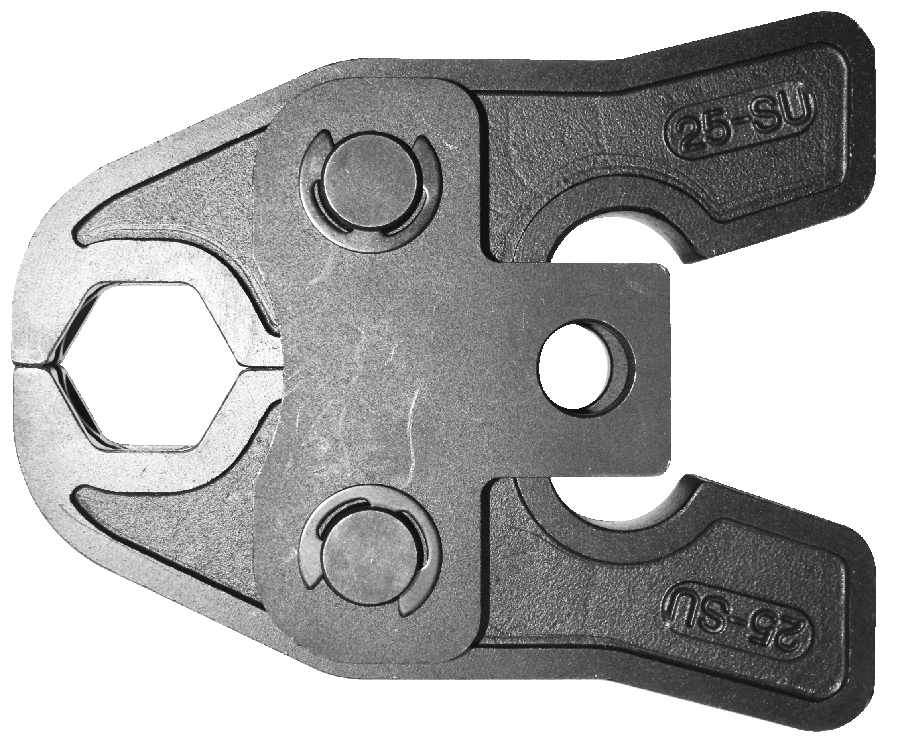

A13-SU	A20-SU	A25-SU

For 1/2” pipe	For 3/4” pipe	For 1” pipe

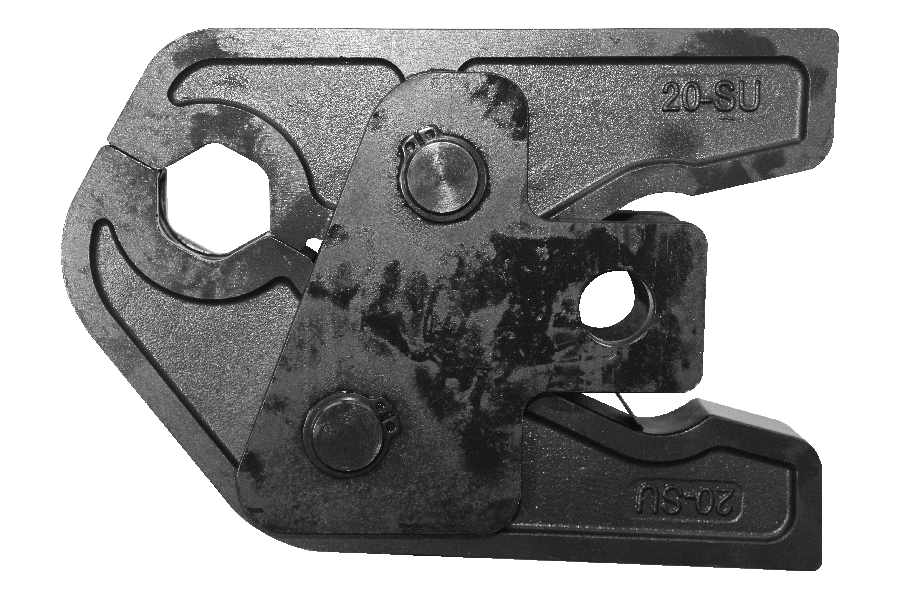

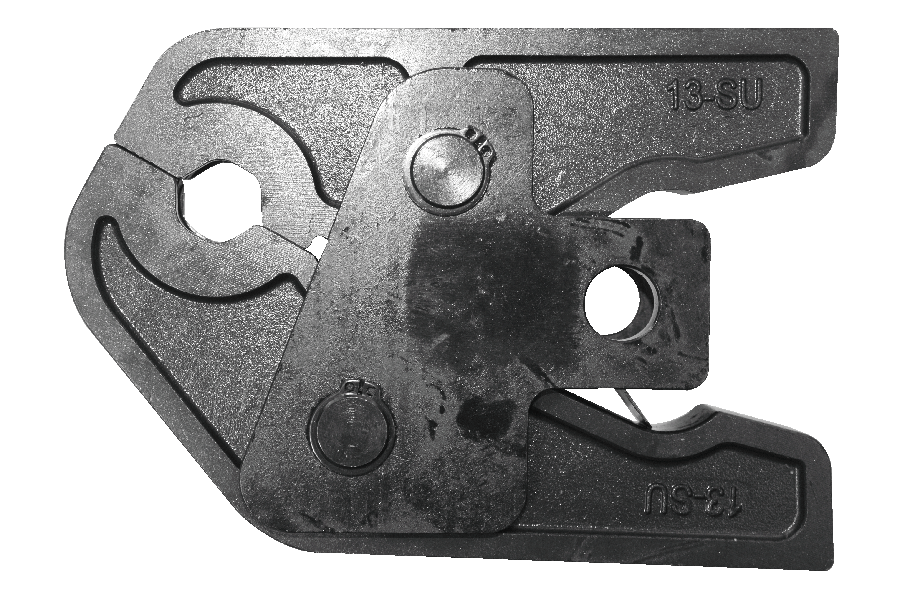

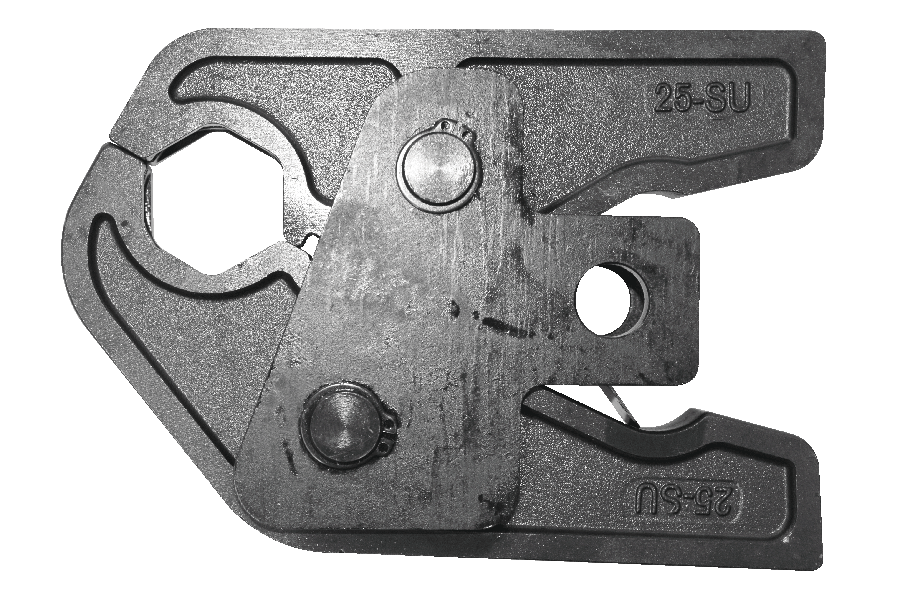

B13-SU	B20-SU	B25-SU

For 1/2” pipe	For 3/4” pipe	For 1” pipe

KUDOS #K50(Die Set) Crimper (Standard JIS G3448)

#Kudos K-150

KUDOS HYD. BATTERY K-150
Youtube from Kudostools.com


#KUDOS K-150
KUDOS #K150 Crimper Length : 328 mm
KUDOS #K150 Crimper Weight : 2.0 kgs(w/o battery)
KUDOS #K150 Specifications :
KUDOS #K150 Crimper Drive unit : 18V DC motor
KUDOS #K150 Crimper Charger (GS/CE) :
KUDOS #K150 Crimper Input voltage : 230V single phase AC
KUDOS #K150 Crimper Input frequency : 50~60Hz
KUDOS #K150 Crimper Reservoir capacity : 48 cc
KUDOS #K150 Crimper capacity :
KUDOS #K150 Crimper Max pressure : 420 bar
KUDOS #K150 Crimper Max output : 4.73 tons / 42.1kN
KUDOS #K150 Crimper Max compression : 150 mm² copper
KUDOS #K150 Crimper Accepts BEKU type dies
KUDOS #K150 Crimper Stock Dies are for DIN46235 terminals
KUDOS #K150 Crimper Dies sold separately

#Kudos K-10C

KUDOS HYD. BATTERY K-10C
Youtube from Kudostools.com


#KUDOS K-10C
KUDOS #K10C Crimper Length : 333 mm
KUDOS #K10C Crimper Weight : 1.5 kgs(w/o battery)
KUDOS #K10C Specifications :
KUDOS #K10C Crimper Drive unit : 18V DC motor
KUDOS #K10C Crimper Charger (GS/CE) :
KUDOS #K10C Crimper Input voltage : 230V single phase AC
KUDOS #K10C Crimper Input frequency : 50~60Hz
KUDOS #K10C Crimper Reservoir capacity : 40 cc
KUDOS #K10C Crimper capacity :
KUDOS #K10C Crimper Max pressure : 380 bar
KUDOS #K10C Crimper Max output : 4.73 tons / 42.1kN

#Kudos K-120

KUDOS HYD. BATTERY K-120
Youtube from Kudostools.com


#KUDOS K-120
KUDOS #K120 Crimper Length : 356 mm
KUDOS #K120 Crimper Weight : 2.3 kgs(w/o battery)
KUDOS #K120 Specifications :
KUDOS #K120 Crimper Drive unit : 18V DC motor
KUDOS #K120 Crimper Charger (GS/CE) :
KUDOS #K120 Crimper Input voltage : 230V single phase AC
KUDOS #K120 Crimper Input frequency : 50~60Hz
KUDOS #K120 Crimper Reservoir capacity : 40 cc
KUDOS #K120 Crimper capacity :
KUDOS #K120 Crimper Max pressure : 600 bar
KUDOS #K120 Crimper Max output : 2.52 tons / 22.4N

KUDOS #K120 Crimper Max compression : 16 mm² ~ 120 mm² copper

#Kudos K-185

KUDOS HYD. BATTERY K-185
Youtube from Kudostools.com


#KUDOS K-185
KUDOS #K185 Crimper Length : 360 mm
KUDOS #K185 Crimper Weight : 2.2 kgs(w/o battery)
KUDOS #K185 Specifications :
KUDOS #K185 Crimper Drive unit : 18V DC motor
KUDOS #K185 Crimper Charger (GS/CE) :
KUDOS #K185 Crimper Input voltage : 230V single phase AC
KUDOS #K185 Crimper Input frequency : 50~60Hz
KUDOS #K185 Crimper Reservoir capacity : 48 cc
KUDOS #K185 Crimper capacity :
KUDOS #K185 Crimper Max pressure : 460 bar
KUDOS #K185 Crimper Max output : 5.77 tons / 51.3 kN

KUDOS #K185 Crimper Max compression : 185 mm² copper

KUDOS #K185 Crimper Accepts BEKU type dies

KUDOS #K185 Crimper Stock Dies are for DIN46235 terminals

KUDOS #K185 Crimper Dies sold separately (AHE1016/2535/5070/95120/150/185)

#Kudos K-240R

KUDOS HYD. BATTERY K-240R
Youtube from Kudostools.com


#KUDOS K-240R
KUDOS #K240R Crimper Length : 354 mm
KUDOS #K240R Crimper Weight : 2.4 kgs(w/o battery)
KUDOS #K240R Specifications :
KUDOS #K240R Crimper Drive unit : 18V DC motor
KUDOS #K240R Crimper Charger (GS/CE) :
KUDOS #K240R Crimper Input voltage : 230V single phase AC
KUDOS #K240R Crimper Input frequency : 50~60Hz
KUDOS #K240R Crimper Reservoir capacity : 48 cc
KUDOS #K240R Crimper capacity :
KUDOS #K240R Crimper Max pressure : 460 bar
KUDOS #K240R Crimper Max output : 5.77 tons / 51.3 kN

KUDOS #K240R Crimper Max compression : 240 mm² copper

KUDOS #K240R Crimper Accepts BEKU type dies

KUDOS #K240R Crimper Stock Dies are for DIN46235 terminals

KUDOS #K240R Crimper Dies sold separately (AHE1016/2535/5070/95120/150/185)

#Kudos K-PH300

KUDOS HYD. BATTERY K-240R
Youtube from Kudostools.com


#KUDOS K-PH300
KUDOS #KPH300 Crimper Length : 359 mm
KUDOS #KPH300 Crimper Weight : 3.0 kgs(w/o battery)
KUDOS #KPH300 Specifications :
KUDOS #KPH300 Crimper Drive unit : 18V DC motor
KUDOS #KPH300 Crimper Charger (GS/CE) :
KUDOS #KPH300 Crimper Input voltage : 230V single phase AC
KUDOS #KPH300 Crimper Input frequency : 50~60Hz
KUDOS #KPH300 Crimper Reservoir capacity : 48 cc
KUDOS #KPH300 Crimper capacity :
KUDOS #KPH300 Crimper Max pressure : 550 bar
KUDOS #KPH300 Crimper Max output : 6.90 tons / 61.4 kN

KUDOS #KPH300 Crimper Max compression : 300 mm² copper, aluminum lugs

KUDOS #KPH300 Crimper Accepts BEKU type dies

KUDOS #KPH300 Crimper Accepts all dies used for Alcoa, Burndy, T&B, Klauke, Cembre and Blackburn 6 ton compressors

KUDOS #KPH300 Crimper Dies sold separately (T16/25/35/50/70/95/12/150/185/240/300)
